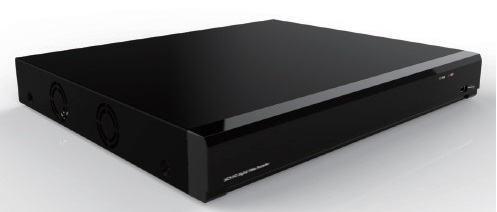

4+2CH CHRA674AS1EA
| ITEM | SPECIFICATION |
|
IP camera input |
6 Channel (4 analog+2 IPCAM / 6 IPCAM) |
|
Input image format |
AHD,TVI,CVI,960H,IP |
|
Video Output |
VGA *1(MAX 1080P) / HDMI *1(MAX 4K) / BNC *1 |
|
Audio Input |
Analog 4 (IP camera input from the camera end) |
|
Audio Output |
1 |
|
Image/sound compression format |
H.264 / H.265;G.711A / G.711U |
|
Storage capacity |
1HDD,Supports a maximum total capacity of up to 10TB |
|
Alarms |
4 in / 1 out |
|
Network Type |
Static IP / DHCP / PPPoE / DDNS |
|
Network Security |
HTTPS / IP filtering (whitelist / blacklist) / Account Password / Custom port |
|
PC connection software |
Google Chrome,Microsoft Edge,Apple Safari browser AI-EMS (Windows / Apple MAC) |
|
Mobile device connection APP |
Mobile AI-EMS (Google/Apple) |
|
AI function |
License plate recognition / Face recognition / Person & vehicle detection / Perimeter intrusion detection / Line crossing detection / Face detection / Queue detection / Crowd detection / People counting / Stationary Object Detection |

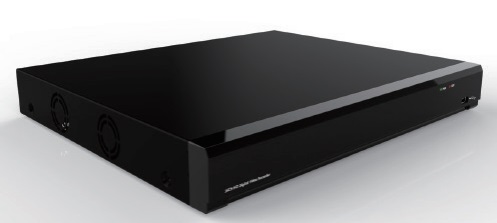

8+4CH CHRA675AS2EA
| ITEM | SPECIFICATION |
|
IP camera input |
12 Channel (8 analog+4 IPCAM / 12 IPCAM) |
|
Input image format |
AHD,TVI,CVI,960H,IP |
|
Video Output |
VGA *1(MAX 1080P) / HDMI *1(MAX 4K) / BNC *1 |
|
Audio Input |
Analog 8 (IP camera input from the camera end) |
|
Audio Output |
1 |
|
Image/sound compression format |
H.264 / H.265;G.711A / G.711U |
|
Storage capacity |
2HDD,Supports a maximum total capacity of up to 20TB |
|
Alarms |
8 in / 1 out |
|
Network Type |
Static IP / DHCP / PPPoE / DDNS |
|
Network Security |
HTTPS / IP filtering (whitelist / blacklist) / Account Password / Custom port |
|
PC connection software |
Google Chrome,Microsoft Edge,Apple Safari browser AI-EMS (Windows / Apple MAC) |
|
Mobile device connection APP |
Mobile AI-EMS (Google/Apple) |
|
AI function |
License plate recognition / Face recognition / Person & vehicle detection / Perimeter intrusion detection / Line crossing detection / Face detection / Queue detection / Crowd detection / People counting / Stationary Object Detection |

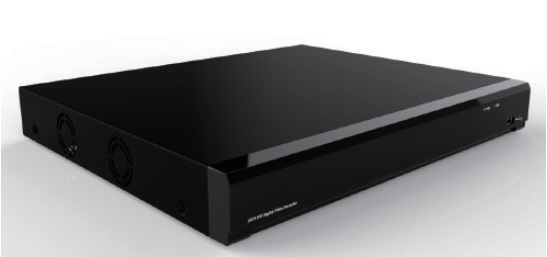

16+8CH CHRA676AS4NA
| ITEM | SPECIFICATION |
|
IP camera input |
24 Channel (16 analog+8 IPCAM / 24 IPCAM) |
|
Input image format |
AHD,TVI,CVI,960H,IP |
|
Video Output |
VGA *1(MAX 1080P) / HDMI *1(MAX 4K) / BNC *1 |
|
Audio Input |
Analog 16 (IP camera input from the camera end) |
|
Audio Output |
1 |
|
Image/sound compression format |
H.264 / H.265;G.711A / G.711U |
|
Storage capacity |
4HDD,Supports a maximum total capacity of up to 40TB |
|
Alarms |
16 in / 1 out |
|
Network Type |
Static IP / DHCP / PPPoE / DDNS |
|
Network Security |
HTTPS / IP filtering (whitelist / blacklist) / Account Password |
|
PC connection software |
Google Chrome,Microsoft Edge,Apple Safari browser AI-EMS (Windows / Apple MAC) |
|
Mobile device connection APP |
Mobile AI-EMS (Google/Apple) |
|
AI function |
License plate recognition / Face recognition / Person & vehicle detection / Perimeter intrusion detection / Line crossing detection / Face detection / Queue detection / Crowd detection / People counting / Stationary Object Detection |
