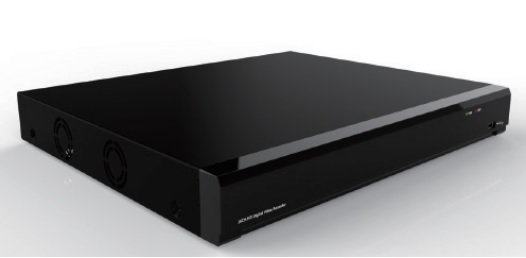

4CH CNRA601OP2NA
| ITEM | SPECIFICATION |
|
IP camera input |
4 |
|
POE |
4 PoE (802.3af) |
|
Video Output |
VGA*1(MAX 1080P)/HDMI*1(MAX 4K) |
|
Audio Input |
4 (IP input from the camera end) |
|
Audio Output |
1 |
|
Image/sound compression format |
H.264 / H.265；G.711A / G.711U |
|
Storage capacity |
2HDD，Supports a maximum total capacity of up to 20TB |
|
Alarms |
4 in / 1 out |
|
Support resolution |
8MP / 5MP / 4MP / 3MP / 2MP(1080P) |
|
Network Type |
Static IP / DHCP / PPPoE / DDNS |
|
Network Security |
HTTPS / IP filtering (whitelist / blacklist) / Account Password |
|
PC connection software |
Google Chrome,Microsoft Edge,Apple Safari browser AI-EMS (Windows / Apple MAC) |
|
Mobile device connection APP |
Mobile AI-EMS (Google/Apple) |
|
AI function |
License plate recognition / Face recognition / Person & vehicle detection / Perimeter intrusion detection / Line crossing detection / Face detection / Queue detection / Crowd detection / People counting / Stationary Object Detection |

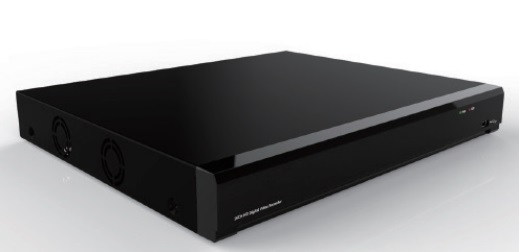

8CH CNRA602OP2NA
| ITEM | SPECIFICATION |
|
IP camera input |
8 |
|
POE |
8 POE (802.3at/af) |
|
Video Output |
VGA *1(MAX 1080P) / HDMI *1(MAX 4K) |
|
Audio Input |
8 (IP input from the camera end) |
|
Audio Output |
1 |
|
Image/sound compression format |
H.264 / H.265；G.711A / G.711U |
|
Storage capacity |
2HDD，Supports a maximum total capacity of up to 20TB |
|
Alarms |
8 in / 1 out |
|
Support resolution |
8MP / 5MP / 4MP / 3MP / 2MP(1080P) |
|
Network Type |
Static IP / DHCP / PPPoE / DDNS |
|
Network Security |
HTTPS / IP filtering (whitelist / blacklist) / Account Password |
|
PC connection software |
Google Chrome,Microsoft Edge,Apple Safari browser AI-EMS (Windows / Apple MAC) |
|
Mobile device connection APP |
Mobile AI-EMS (Google/Apple) |
|
AI function |
License plate recognition / Face recognition / Person & vehicle detection / Perimeter intrusion detection / Line crossing detection / Face detection / Queue detection / Crowd detection / People counting / Stationary Object Detection |

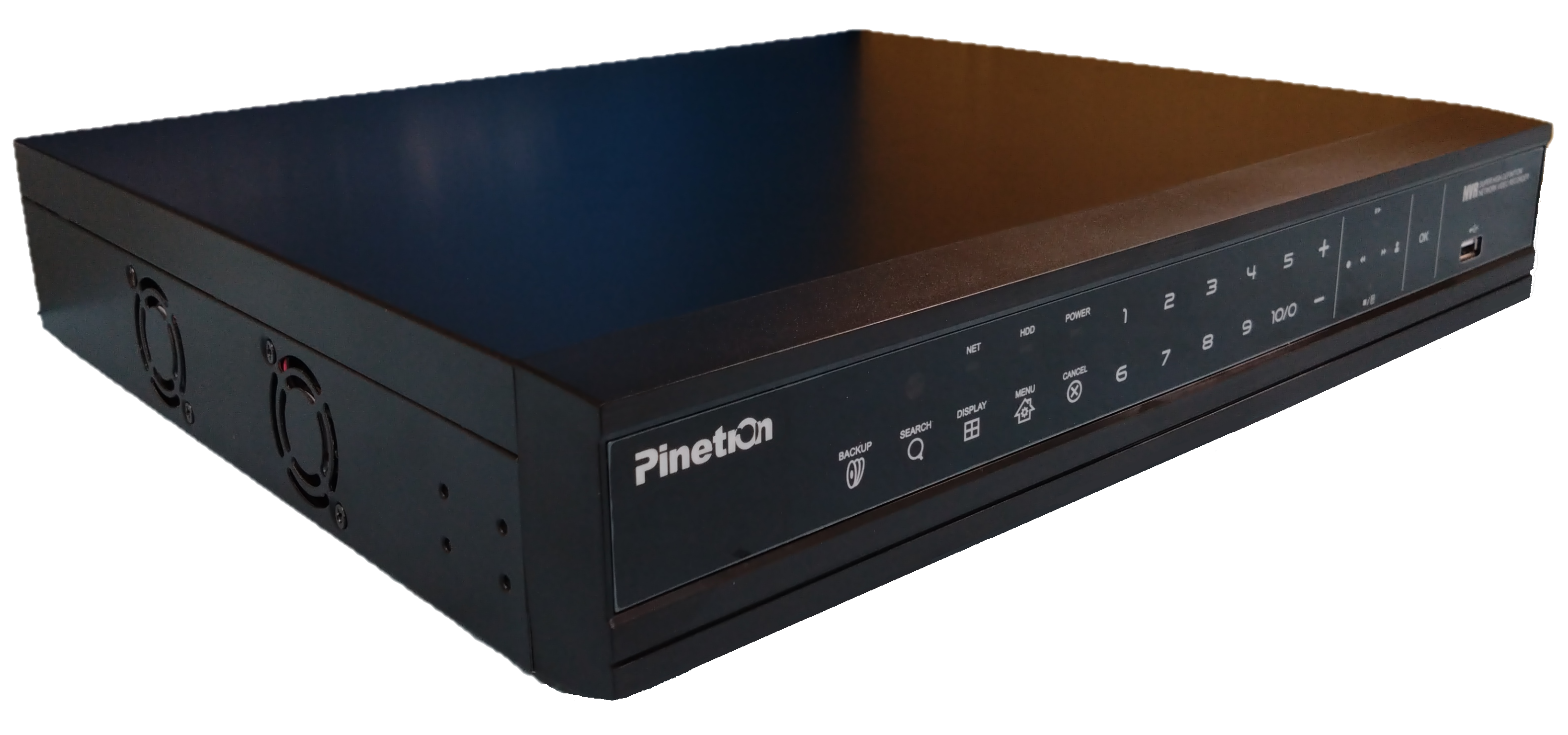

16CH CNRA6A3ON4EA
| ITEM | SPECIFICATION |
|
IP camera input |
16 |
|
Video Output |
HDMI *2 |
|
Audio Input |
16 (IP input from the camera end) |
|
Audio Output |
1 |
|
Image/sound compression format |
H.264 / H.265；G.711A / G.711U |
|
Storage capacity |
4HDD，Supports a maximum total capacity of up to 40TB |
|
Alarms |
16 in / 1 out |
|
Support resolution |
8MP / 5MP / 4MP / 3MP / 2MP(1080P) |
|
Network Type |
Static IP / DHCP / PPPoE / DDNS |
|
Network Security |
HTTPS / IP filtering (whitelist / blacklist) / Account Password |
|
PC connection software |
Google Chrome,Microsoft Edge,Apple Safari browser AI-EMS (Windows / Apple MAC) |
|
Mobile device connection APP |
Mobile AI-EMS (Google/Apple) |
|
AI function |
License plate recognition / Face recognition / Person & vehicle detection / Perimeter intrusion detection / Line crossing detection / Face detection / Queue detection / Crowd detection / People counting / Stationary Object Detection |

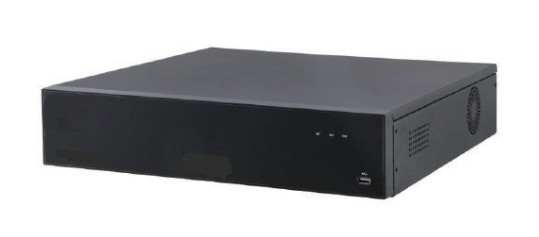

32CH CNRA6A4ON8EP
32CH H.265 4K High Definition Network Video Recorder
Product Features：
AI License Plate Recognition (LPR)
AI Human and Vehicle Detection
4K UHD High-Resolution Recording
Supports ONVIF and RTSP Protocols
Mobile Management App
Scheduled Snapshot Capture and Storage
Taiwanese Chipset
Specifications：
| Video Channel/Audio | |
| IP camera input | 32 |
| POE | None |
| Video Output | VGA *1(MAX 1080P) / HDMI *2(MAX 4K) |
| Audio Input | 1/32(IP input from the camera end) |
| Audio Output | 1 |
| Compression | H.264 / H.265 / H.264+ / H.265+；G.711A / G.711U |
| Recordering | |
| HDD | 8 SATA HDD，each up to 12TB |
| Recording Resolution | 8MP / 5MP / 3MP / 2MP(1080P) / 1.3MP(960P) / 1MP(720P) |
| Speed | 8MP@120fps / 4MP@240fps / 2MP@480fps |
| Snapshot Interval | 5 S / 10 S / 30 S / 1 Min / 10 Min / 30 Min / 1 Hour |
| Playback/Backup | |
| Local Playback | Max 16CH playback |
| Search Mode | Time / Events / Slice / Smart / Sub-periods /Picture / Face Detection / License Plate/ Pedestrian & Vehicle / Perimeter Intrusion & Line Crossing / Region / Repeat Visitors / Face Attendance |
| Backup Method | e-SATA / USB / Network |
| Backup Format | Private / AVI / MP4 |
| Network | |
| Bandwidth | 320Mbps |
| Interface | RJ-45 1000Mbps Ethernet interfaces *2 |
| Network Type | Static IP / DHCP / PPPoE / DDNS |
| Cybersecurity | HTTPS / IP filter(Allow / Block) / Account password |
| Communication Protocol | Onvif / RTSP |
| PC remote Access Software | AI-EMS |
| Mobile APP | Mobile AI-EMS |
| FTP Backup | Supports uploading snapshots or event videos to your FTP server. |
| P2P | You can scan the QR code with your mobile app to view the NVR remotely. |
| Cloud Storage | Supports uploading snapshots and videos (selected features) to Dropbox and Google Drive. |
| Event Function | |
| AI Image Recognition (Requires specific camera model) |
License Plate Detection / Face Detection / Pedestrian&Vehicle Detection / Perimeter Intrusion Detection / Line Crodding / Line Crossing Detection / Crowd Density Detection / Cross Counting / Object Detection / Fire Detection / Temperature Measurement |
| E-MAIL notification | Motion / Image Recognition/Alarm in / Disk Error / Video Loss / No Space on Disk |
| Other | |
| USB | USB 3.0 x1，USB 2.0 x2 |
| e-SATA | 1 e-SATA port |
| PTZ control | RS-485 |
| Alarm Input/out | 16 in / 4 out |
| Input Voltage/Current | AC 100~240V / 250W |
| Power consumption (excluding hard disk) | 8W |
| Dimension (WxDxH) | 440 x 460 x 89mm |
| Operating Temperature/Humidity | 0 ~ +50℃ / ≤90%RH |
| *Product specifications are subject to change without notice. | |
.jpg)

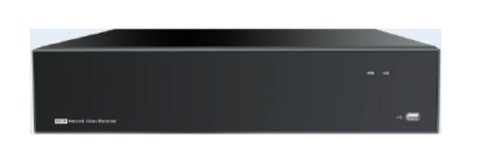

32CH CNRA604ON8EP(RAID)
32CH H.265 4K High Definition Network Video Recorder
Product Features：
Supports RAID 0 / 1 / 5 / 6 / 10
Supports up to 8 HDDs
Network Whitelist and Blacklist Security Protection
Enhanced Password Protection
Flexible User Access Control
AI License Plate Recognition (LPR) and People Counting
AI Human and Vehicle Detection and Facial Recognition
Advanced AI Search Capabilities
4K UHD High-Resolution Recording
Supports ONVIF and RTSP Protocols
Specifications：
| Video Channel/Audio | |
| IP camera input | 32 |
| Fisheye | Support |
| Video Output | HDMI *2(MAX 8K) ＊When the HDMI-1 is set to 8K, HDMI-2 will be disabled |
| Audio Input | 1/32(IP input from the camera end) |
| Audio Output | 1 |
| Compression | H.264 / H.265 / H.264+ / H.265+；G.711A / G.711U |
| Recordering | |
| HDD | 8 SATA HDD，each up to 12TB |
| RAID Type | RAID0 / RAID1 / RAID5 / RAID6 / RAID10 |
| Recording Resolution | 12MP，8MP，5MP，3MP，2MP(1080P)，1.3MP(960P)，1.0MP(720P) |
| Speed | 4K：240fps ，4MP：480fps，2MP：960fps |
| Snapshot Interval | 5 S / 10 S / 30 S / 1 Min / 10 Min / 30 Min / 1 Hour |
| Playback/Backup | |
| Local Playback | 16CH，Fast forward / backward (2x, 4x, 8x,16x) Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Search Mode | Time / Events / Slice / Smart / Sub-periods /Picture |
| Backup Method | USB / Network |
| Backup Format | Private / AVI / MP4 |
| Network | |
| Bandwidth Input /out | 640M / 640M |
| Interface | RJ45 1000 Base-Tx2 |
| Network Type | Static IP / DHCP / PPPoE / DDNS |
| Cybersecurity | HTTPS / IP filter(Allow / Block) / Account password |
| Web | IE10/11，Safari V12.1，Firefox V.52，Google chrome V.57，Edge V.79 |
| PC remote Access Software | AI-EMS (Windows / Apple MAC |
| Mobile APP | Mobile AI-EMS |
| Push Notification | Push notification to Mobile APP |
| FTP Backup | Supports uploading snapshots or event videos to your FTP server. |
| P2P | You can scan the QR code with your mobile app to view the NVR remotely. |
| Cloud Storage | Supports uploading snapshots and videos to Dropbox and Google Drive. |
| Event Function | |
| AI Image Recognition (Requires specific camera model) |
License Plate Detection / Face Detection / Pedestrian&Vehicle Detection / Perimeter Intrusion Detection / Line Crodding / Line Crossing Detection / Crowd Density Detection / Cross Counting / Object Detection / Rare Sound Detection |
| E-MAIL notification | Motion / Image Recognition/Alarm in / Disk Error / Video Loss / No Space on Disk |
| Other | |
| USB | USB 2.0 x1，USB 3.0 x2 |
| e-SATA | 1 |
| PTZ control | RS-485 |
| Alarm Input/out | 16 in / 4 out |
| Input Voltage | AC 100 ~ 240V |
| Power consumption (excluding hard disk) | 8W |
| Dimension (WxDxH) | 440 x 460 x 100mm |
| Operating Temperature | -10 ~ +50℃ |
| Operating Humidity | ≤ 90%RH |
| *Product specifications are subject to change without notice. | |
