CPEA9506GNNN
specification
4-port Giga PoE power supply network switch
Product Features：
Supports power supply via Cat5/6 Ethernet cable IP cameras
Port 1-4 supports standard IEEE802.3af/at (port power supply is 30W)
4 x 10/100/1000Mbps auto-adjusting RJ45 ports
It is compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3z, and IEEE 802.3ab standards
Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
Support Auto MDI/MDIX
Support network port lightning protection (AC power port: differential mode +/-2kV, common mode +/-4kV)
Maximum PoE power: 65W
Specifications：
| Interface |
4*10/100/1000M PoE Port(Data/Power) 2*10/100/1000M uplink RJ45 Ports (Data) |
| Forwarding Mode | Storage forwarding, forwarding memory 192K |
| Back Panel Strap Width | 16Gbps (no blocking) |
| Packet Forwarding Rate | 2Mpps @64byte |
| MAC | 8K |
| Network Protocols and Standards Compatible |
IEEE 802.3；IEEE 802.3u；IEEE 802.3ab；IEEE 802.3x Flow Control IEEE 802.3af/at DTE Power via MDI |
| LEDs Indicator | Power Indicator: PWR (Green), Network Indicator: Link (Yellow), PoE Indicator: PoE (Green) |
| Power Output | IEEE 802.3af/at international standard, single-port power supply power of 30W, total power of the whole machine 65W |
| Power Supply | External power supply AC100-240V, 50/60Hz / DC52V |
| Weight | 0.25kg |
| Size | 118 x 89 x 25mm |
| Work Environment | Operating Temperature: -20 ~ 55°C, Working Humidity: 10 ~ 90% (non-condensing) |
| *Specifications are subject to change without notice. | |
CPEA9506GSPN
specification
4 PoE Gigabit ports & 2 SFP network switch
Product Features：
All ports support line-speed forwarding without blocking for smoother transmission
It supports IEEE 802.3x full-duplex flow control and backpressure flow control
Four 10/100/1000Base-T RJ45 ports support PoE power supply to meet the needs of PoE power supply in scenarios such as security monitoring, conference call systems, and wireless coverage
Compliant with IEEE 802.3af/at PoE power supply standard, automatically identify PoE devices for power supply without damaging non-PoE devices
The maximum PoE output power of the whole machine is 65W, and the maximum PoE output power of a single port is 30W
PoE ports support a priority mechanism, when the remaining power is insufficient, priority is given to ensuring the power supply of high-priority ports to avoid overloading equipment
The host has low power consumption, fanless silent design, galvanized steel metal shell, excellent heat dissipation, and ensures stable operation of the product
It adopts a self-developed power supply with a high redundancy design to provide long-term and stable PoE power output
It meets the safety requirements of CE and FCC, making it safe and reliable to use
Plug and play, no configuration required, simple and convenient
Users can easily understand the working status of the device through the power indicator (PWR), port status indicator (Link), and PoE operation indicator
Specifications：
| Fixed Ports | 4*10/100/1000Base-T PoE Port (Data / Power) 2*1000Base-X SFP Optical Port Slot (Data) |
| PoE Ports | 1-4 ports support IEEE 802.3af/at standard PoE power supply |
| Network Protocols | IEEE802.3 10BASE-T；IEEE802.3i 10Base-T；IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X；IEEE802.3x |
| Power Supply Standards | Compliant IEEE 802.3af/at International standards |
| Port Characteristics | 1-4 ports 10/100/1000Base T automatic detection, full/half duplex MDI/MDI-X self-adjustment |
| Fiber Port Characteristics | Gigabit SFP fiber interface, not matched with optical module by default, needs to be purchased separately (optional order mode/multimode, single fiber/dual fiber optical module, LC) |
| Forwarding Mode | Storage and Forwarding (Full Line Speed) |
| Backplane Bandwidth | 12Gbps (no blocking) |
| The Package Forwarding Rate is @64byte | 8.93Mpps |
| MAC Address Table | 2K |
| Package Forwarding Cache | 2M |
| Twisted Pair Transmission | 10BASE-T：Cat3,4,5 UTP(≤100meter) 100BASE-TX：Cat5 or later UTP(≤100meter) 1000BASE-T：Cat5e or later UTP(≤100meter) |
| Fiber Optic Cable | Multimode: 850nm, 0 ~ 550m Single-mode: 1310nm, 0 ~ 40km; 1550nm, 0 ~ 120km |
| Power Supply Pin | Default 1/2 (+), 3/6 (-); Optional 4/5 (+), 7/8 (-), 4-core power supply |
| Highest Single-Port/Average Power | 30W / 15.4W |
| Total Power/Input Voltage | 65W(DC52V) |
| The Power Consumption of The Whole Machine | Standby power consumption: < 5W; Full-load power consumption: < 65W |
| LED Indicator | Power Indicator: PWR (Green), Data Indicator: Link (Yellow), PoE Indicator: PoE (Green) |
| Matching Power Supply | External Power Adapter, AC: 100~240V, 50-60Hz, 1.1A |
| Operating Temperature/Humidity | -20 ~ +55℃； 5 ~ 90% RH , non-condensing |
| Storage Temperature/Humidity | -40 ~ +75℃； 5 ~ 95% RH , non-condensing |
| Dimensions (LxWxH) | 118 x 95 x 28mm |
| Net/Gross Weight | ＜0.35kg / ＜1.0kg |
| Installation Method | Desktop, wall-mounted |
| Surge Protection / Ingress Protection (IP Rating) | Port surge protection: 4kV (8/20μs), protection level: IP30 |
| *Specifications are subject to change without notice. | |

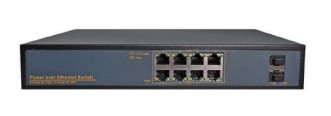

CPEA9610GSPN
specification
8 Port Giga PoE / 2 Port SFP SWITCH
Product Features：
8 Gigabit auto-negotiating RJ45 ports, 2 optical ports supporting SFP modules
8 RJ45 ports support PoE power supply, compliant with IEEE 802.3af/at standards
PoE per-port power: 30W; total power budget: 130W
Supports Auto MDI/MDIX
Supports surge protection on network ports (AC power port: differential mode ±2kV, common mode ±4kV)
Adopts store-and-forward switching mechanism, with 192K forwarding memory
All ports support wire-speed switching, achieving full line rate for frame sizes from 64 to 1536 bytes
Standard wall-mount design for easy installation
Zero-configuration feature: power is automatically supplied to adaptive devices; plug-and-play without software or protocol conversion
Default PoE power supply mode is End-span; Mid-span can be customized
Specifications：
| PoE Interface | 8* Giga PoE + RJ45 + 2* Giga SFP |
| Performance Specifications | Bandwidth: 48Gbps (no blocking) SRAM buffer: 4M MAC address: 8K Packet forwarding rate: 14.88Mpps@64byts Forwarding method: Store forwarding Mean Time Between Failures (MTBF): 10 hours |
| Network Protocols and Standard Compatible | IEEE 802.3i 10BASE-T；IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T；EEE 802.3z 1000BASE-T ANSI/IEEE Std 802.3 Nway；IEEE 802.3x |
| LEDs Indicator | System: Power / Per port: Connection, PoE working status |
| PoE Characteristics | PoE standard: IEEE 802.3af/at PoE Maximum power supply power of a single port: 30W 8 PoE ports, automatic recognition of PD devices PoE output voltage: DC48V~55V The default PoE power supply method is the terminal jumper method (12 and 36 wire pairs), and the middle can be selected Jumper method (45, 78 wire pairs) |
| Size | 279 x 210 x 44mm |
| Power Supply | AC100V ~ 240V (Input) |
| Work Environment | Operating Temperature: -20 ~ 55°C / Storage Temperature: -40 ~ 85°C Relative humidity: 5~95%, no condensation |
| *Specifications are subject to change without notice. | |

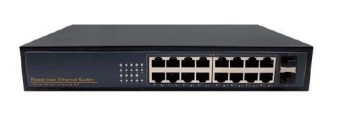

CPEA9318GSPN
specification
16 Port Giga PoE + 2 Port Giga SFP Network switch
Product Features：
/> 16 Giga self-adjusting RJ45 ports, 2 SFP ports
The 16-port supports PoE power supply and complies with the IEEE 802.3af/at standard
The maximum power of a single port is 30W; The total power of the whole machine is 250W
Support Auto MDI / MDIX
Support network port lightning protection (AC power supply: differential mode +/-2kV, common mode +/-4kV)
It adopts a storage forwarding switching mechanism to forward memory 4M
All ports support wire speed swapping. The line speed can be reached in the range of 64 ~ 1536 frame lengths
Standard wall-mounted design for easy installation and use
The PoE power supply method is End-span by default
Specifications：
| Interface | 16 Port Giga PoE + 2 GB SFP |
| Performance Specifications | Backplane Bandwidth: 52Gbps (no blocking) MAC address: 8K Packet forwarding memory: 4M Packet forwarding rate: 26.78Mpps@64byts Forwarding method: Store forwarding |
| Network Cable | Cat.5/6 or above unshielded twisted pair (≤100m) |
| Network Protocols and Standards Compatible | IEEE 802.3 10BASE-T；IEEE 802.3u 100BASE-TX；IEEE 802.3ab 1000BASE-T IEEE 802.3x；IEEE 802.3af；IEEE 802.3at |
| LEDs Indicator | System: Power / Per port: Connection, PoE working status |
| Power Supply | AC100V ~ 240V (Input) |
| PoE Characteristics | PoE standard: IEEE 802.3af/at The maximum power of a single port is 30W, and the total power of the whole machine is 250W 16 PoE ports for automatic recognition of PD devices PoE Output Voltage: DC52V (44-57V) PoE power supply method is terminal jumper method (1/2, 3/6 wire pairs) |
| Size | 270.5 x 181 x 44.5mm |
| Work Environment | Operating temperature: -20 ~ 55°C, storage temperature: -20 ~ 75°C |
