Thermal Imaging Camera

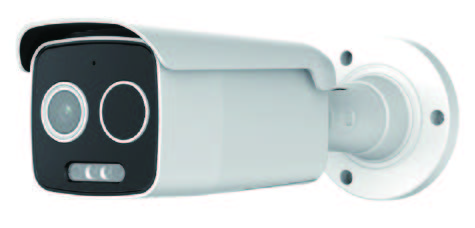

SCAC5IBI53AF
⚫ Thermal & Optical bi-spectrum video with one IP
⚫ Vanadium oxide uncooled focal plane detector
⚫ Thermal: 256 x 192 resolution, 12μm≤40mk @ 25°C F1.0
⚫ Optical: 2592 x 1944(5MP), 120dB WDR
⚫ Support reliable fire detection and fire shield area
⚫ Support various AI functions at thermal & optical both streams
⚫ Support dual image fusion
⚫ Temperature exception alarm
⚫ Temperature range: -20°C ~ 150°Cs
⚫ Support audio and light alarm with built in red and blue flashing light
Spec：
| Thermographic |
IR Sensor Frame Rate
|
25Hz
|
|
IR Sensor Resolution
|
256( h) × 192(v) Pixel
|
|
| Spectral Range |
LWIR, 8 to 14 μ m
|
|
| Field of View (FOV) |
56°H , 42°V diagonal (f 1.1)
|
|
| Temperature Sensitivity |
≤40mk@25°C F＃1.0
|
|
| Temperature Range |
- 20 ~ +150℃
|
|
|
Live Image
|
CMOS Sensor
|
1/2.7” Progressive Scan CMOS |
| Effective Pixels | 2592(H) X 1944( V) : 5M | |
| Frame Rate |
30 fps
|
|
|
Others
|
Alarm Out | 1 port |
|
Operating Temperature
|
- 35 ~ +60℃
|
|
|
IP Level
|
IP67 | |
|
Power
|
12VDC ±20%，PoE(802.3af)
|
|
| Power consumption |
Maximum 18.2W
|
|
|
Demension
|
φ108x314.6mm
|
|
|
Weight
|
1247.7g
|
SCAD26OIDXWP
⚫ Dual Sensor (Thermal+Sensor) IP Camera
⚫ 3 Mode Display Support ( Visual / Thermal / Overlay)
⚫ White LED (Manual operaton or temperature alarm )
⚫ IP67 Ingress Protection
⚫ Onvif compliant: Support Any NVR&VMS
⚫ Dedicated Temp. Monitoring S/W T VMS
⚫ Dedicated Temp. Monitoring S/W Termosens Face Detection
Spec：
|
Thermographic |
IR Sensor Frame Rate |
<9Hz |
|
IR Sensor Resolution |
160( h) x 120(v) Pixel |
|
|
Spectral Range |
LWIR, 8 to 14 μ m |
|
|
Field of View (FOV) |
51° HFOV, 63.5° diagonal |
|
|
Temperature Sensitivity |
<50 mK ( 0.05°C) |
|
|
Temperature Range |
High Gain Mode: -10 ℃ ~ 140 ℃ |
|
|
Live Image |
CMOS Sensor |
Sony Diagonal 6.15mm CMOS Progressive Scan |
|
Effective Pixels |
2592(H) X 1944( V) : 5M |
|
|
Frame Rate |
30 fps |
|
|
Resized Resolution |
1600 (h) × 1200 (v) Pixel |
|
|
Multi User Access |
8 (RTSP Streaming) |
|
|
Others |
Alarm Out |
1 port(Dry contact, relay out) |
|
Operating Temperature |
0°C ∼ +50°C (32°F ∼ +122°F) |
|
|
Power |
PoE( 802.3.af) af), DC12V |
|
|
Power consumption |
5W |
|
|
IP Level |
IP 67 |
|
|
Demension(wxhxd ) |
80x131X47(mm) |
|
|
Weight |
400g |
SCAD25OIDXWP
⚫ Dual Sensor (Thermal+Sensor) IP Camera
⚫ 3 Mode Display Support ( Visual / Thermal / Overlay)
⚫ White LED (Manual operaton or temperature alarm )
⚫ IP67 Ingress Protection
⚫ Onvif compliant: Support Any NVR&VMS
⚫ Dedicated Temp. Monitoring S/W T VMS
Spec：
| Thermographic |
IR Sensor Frame Rate
|
<9Hz
|
|
IR Sensor Resolution
|
80( h) x 60(v) Pixel
|
|
| Spectral Range |
LWIR, 8 to 14 μ m
|
|
| Field of View (FOV) |
51° HFOV, 63.5° diagonal
(f/1.1 silicon doublet) |
|
| Temperature Sensitivity |
<50 mK ( 0.05°C)
|
|
| Temperature Range |
High Gain Mode: -10 ℃ ~ 140 ℃
Low Gain Mode: -10 ℃ ~ 450 ℃ |
|
|
Live Image
|
CMOS Sensor
|
Sony Diagonal 6.15mm CMOS Progressive Scan |
| Effective Pixels | 2592(H) X 1944( V) : 5M | |
| Frame Rate |
30 fps
|
|
| Resized Resolution | 1280 (h) × 720 (v) Pixel | |
| Multi User Access | 8 (RTSP Streaming) | |
|
Others
|
Alarm Out | 1 port(Dry contact, relay out) |
|
Operating Temperature
|
0°C ∼ +50°C (32°F ∼ +122°F)
|
|
|
Power
|
PoE( 802.3.af) af), DC12V
|
|
| Power consumption |
5W
|
|
|
IP Level
|
IP 67 | |
|
Demension(wxhxd )
|
80x131X47(mm)
|
|
|
Weight
|
400g
|
