CAMERA

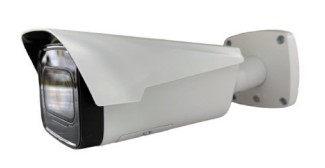

SCAE38BI5ZIP
specification
5MP IR Vari-Focal Bullet IP Camera
Product Features：
5MP 1/2.7" CMOS image sensor, low luminance, and high definition image
H.265/ H.264 codec, high compression rate, ultra-low bit rate
Built-in IR LED , and the max. illumination distance is 50m
Motorized vari-focal 2.7mm-13.5mm
Stream Capability 3 Stream
Outputs max 5MP(2960 x 1696)@30Fps
120dB WDR
Built-in Mic
Audio input/ output 1/1 channel
Alarm input/ output 1/1 channel
DC12V/PoE power supply
ONVIF Profile S/G/T/M
Specifications：
| Image Sensor | 5MP 1/2.8” Progressive CMOS |
| Max. Resolution | Main Stream：H.265 2960x1696(5MP)@30fps Sub Stream：H.265 704x480(D1)@30fps Third Stream：H.265 1920x1080(1080P)@30fps |
| Lens Type | Motorized vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Min. Illumination | Color 0.01Lu@F1.6，B/W 0.001Lux@F1.6，0 lux with IR illumination on |
| Aperture | F1.6 |
| Day/Night | Removable IR-cut filter |
| Electronic Shutter | Auto / Manual 1/3 ~ 1/100,000s |
| WDR | 120dB |
| Image Setting | Exposure、White Balance、Brightness、HLC、Sharpness、Contrast、Saturation、Warmth、3DNR、OSD、Privacy Masking |
| Image Rotation | 0° / 90° / 180° / 270° |
| IR Illuminators | Hight Power LED*4 / Effective IR Range up to 50m |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Streaming | Supports up to 3 independent H.265 / H.264 / MJPEG streams, each stream is fully customizable for resolution, frame rate, and bitrate. Supports bitrate control (VBR / CBR) for H.265 / H.264. |
| Main Stream | 2960x1696，2880x1620，2688x1520，2560x1440，2304x1296，1920x1080，1280x960，1280x720 |
| Sub Stream | 704x480，640x480，352x240 |
| Third Stream | 1920x1080，1280x720，704x480，640x480 |
| Audio Compression | G.711a / G.711Mu / PCM / G.726 / AAC |
| Built-in Mic | Supports |
| Network Port | 10/100Mbps Ethernet |
| Security | Digest / Account lockout / Video encryption / Firmware encryption / Configuration encryption / HTTPS / IP Filter / IEEE 802.1x / X.509 / WSSE |
| Network Protocols | IPv4，IPv6，HTTP，TCP，UDP，ARP，RTP，RTSP，RTCP，RTMP，SMTP，FTP，SFTP，DHCP，DNS，DDNS，QoS，UPnP，NTP，Multicast，ICMP，IGMP，NFS，PPPoE，SNMP |
| ONVIF | Profile S / G / T / M |
| Alarm Event | Motion detection / Video Tampering / Audio detection / Network disconnection / IP Conflict / Voltage Detection |
| Casing Material | Metal + plastic |
| Power Consumption | PoE IEEE802.3af，11W(Max)；DC12V 10W(Max) |
| Interface | RJ45、DC12V、Audio Input/Output 1/1CH(RCA)、Alarm Input/Output 1/1CH(RCA) |
| Storage | NAS、FTP/SFTP、SD card |
| Operating Temperature | -30 ~ 60℃，≤95%，non-condensing |
| Storage Temperature | -40 ~ 60℃，≤95%，non-condensing |
| IP Rating | IP68 |
| Certifications | CE / FCC / IK10 / BSMI |
| Surge Protection | 4KV |
| Dimensions / Weight | 273.2 x 95.0 x 95.0mm，1.5kg |
| *Specifications are subject to change without notice. | |

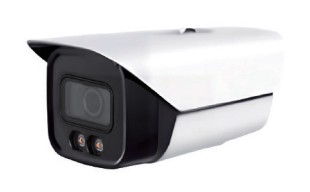

SCAE38BI53AP
specification
5MP Dual-Light Fixed-Focal Bullet IP Camera
Product Features：
5MP 1/2.7" CMOS image sensor, low luminance, and high definition image
Built-in warm light and IR LED , the max. IR distance is 60m and the max. warm light distance is 30m
H.265/H.264 high compression rate, ultra-low bit rate
Stream Capability 3 Stream
Outputs max 5MP(2960 x 1696 )@30Fps
120dB WDR
Built-in Mic
DC12V/PoE power supply
ONVIF Profile S/T
Specifications：
| Image Sensor | 5MP 1/2.8” Progressive CMOS |
| Max. Resolution | Main Stream：H.265 2960x1696(5MP)@30fps Sub Stream：H.265 704x480(D1)@30fps Third Stream：H.265 704x480(D1)@30fps |
| Lens Type | Fixed-focal 3.6mm/F1.6 |
| Min. Illumination | Color 0.01Lux@F1.6，B/W 0.001Lux@F1.6，0 lux with IR illumination on |
| Day/Night | Removable IR-cut filter |
| Electronic Shutter | Auto / Manual 1/3 ~ 1/100,000s |
| WDR | 120dB |
| Image Setting | Exposure、White Balance、Brightness、Sharpness、Contrast、Saturation、Warmth、NR、OSD、Privacy Masking |
| Image Rotation | 0°/ 90°/ 180°/ 270° |
| IR Illuminators | 60m |
| Warm Light Illuminators | 30m |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Streaming | Supports up to 3 independent H.265 / H.264 / MJPEG streams, each stream is fully customizable for resolution, frame rate, and bitrate. Supports bitrate control (VBR / CBR) for H.265 / H.264. |
| Main Stream | 2960x1696，2880x1620，2688x1520，2560x1440，2304x1296，1920x1080，1280x960，1280x720 |
| Sub Stream | 704x480，640x480，352x240 |
| Third Stream | 704x480 |
| Audio Compression | G.711a / G.711Mu / PCM / G.726 / AAC |
| Built-in Mic | Supports |
| Network Port | 10/100Mbps Ethernet |
| Security | Digest / Account lockout / Video encryption / Firmware encryption / Configuration encryption /HTTPS / IP Filter / IEEE 802.1x / X.509 / WSSE |
| Network Protocols | IPv4，IPv6，HTTP，TCP，UDP，ARP，RTP，RTSP，RTCP，RTMP，SMTP，FTP，SFTP，DHCP，DNS，DDNS，QoS，UPnP，NTP，Multicast，ICMP，IGMP，NFS，PPPoE，SNMP |
| ONVIF | Profile S / T |
| Alarm Event | Motion detection / Video Tampering / Audio detection / Network disconnection / IP Conflict / Voltage Detection |
| Casing Material | Metal + plastic |
| Power Consumption | PoE IEEE802.3af，7W(Max)；DC12V 6W(Max) |
| Interface | RJ45、DC12V |
| Storage | NAS、FTP/SFTP |
| Operating Temperature | -40 ~ 60℃，≤95%，non-condensing |
| Storage Temperature | -40 ~ 60℃，≤95%，non-condensing |
| IP Rating | IP68 |
| Certifications | CE / FCC / IK10 / BSMI |
| Dimensions / Weight | 194.4 x 96.6 x 89.5mm，750g |
| *Specifications are subject to change without notice. | |
SCAE38DI5ZIP
specification
5MP IR Vari-Focal Dome IP Camera
Product Features：
5MP 1/2.7" CMOS image sensor, low luminance, and high definition image
H.265/H.264 high compression rate, ultra-low bit rate
Built-in IR LED , and the max. illumination distance is 40m
Motorized vari-focal 2.7mm-13.5mm
Stream Capability 3 Stream
Outputs max 5MP(2960 x 1696 )@30Fps
120dB WDR
Built-in Mic
Audio input/ output 1/1 channel
Alarm input/ output 1/1 channel
DC12V/ AC24V/ PoE power supply
ONVIF Profile S/G/T/M
Specifications：
| Image Sensor | 5MP 1/2.8” Progressive CMOS |
| Max. Resolution | Main Stream：H.265 2960x1696(5MP)@30fps Sub Stream：H.265 704x480(D1)@30fps Third Stream：H.265 1920x1080(1080P)@30fps |
| Lens Type | Motorized vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Min. Illumination | Color 0.01Lux@F1.6，B/W 0.001Lux@F1.6，0 lux with IR illumination on |
| Aperture | F1.6 |
| Day/Night | Removable IR-cut filter |
| Electronic Shutter | Auto / Manual 1/3 ~ 1/100,000s |
| WDR | 120dB |
| Image Setting | Exposure、White Balance、Brightness、Sharpness、Contrast、Saturation、Warmth、NR、OSD、Privacy Masking |
| Image Rotation | 0°/ 90°/ 180°/ 270° |
| IR Illuminators | 40m |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Streaming | Supports up to 3 independent H.265 / H.264 / MJPEG streams, each stream is fully customizable for resolution, frame rate, and bitrate. Supports bitrate control (VBR / CBR) for H.265 / H.264. |
| Main Stream | 2960x1696，2880x1620，2688x1520，2560x1440，2304x1296，1920x1080，1280x960，1280x720 |
| Sub Stream | 704x480，640x480，352x240 |
| Third Stream | 1920x1080，1280x720，704x480，640x480 |
| Audio Compression | G.711a / G.711Mu / PCM / G.726 / AAC |
| Built-in Mic | Supports |
| Network Port | 10/100Mbps Ethernet |
| Security | Digest / Account lockout / Video encryption / Firmware encryption / Configuration encryption / HTTPS / IP Filter / IEEE 802.1x / X.509 / WSSE |
| Network Protocols | IPv4，IPv6，HTTP，TCP，UDP，ARP，RTP，RTSP，RTCP，RTMP，SMTP，FTP，SFTP，DHCP，DNS，DDNS，QoS，UPnP，NTP，Multicast，ICMP，IGMP，NFS，PPPoE，SNMP |
| ONVIF | Profile S / G / T / M |
| Alarm Event | Motion detection / Video Tampering / Audio detection / Network disconnection / IP Conflict / Voltage Detection |
| Casing Material | Metal + plastic |
| Power Consumption | PoE IEEE802.3af，10W(Max)；DC12V 8W(Max)，AC24V 10W(Max) |
| Interface | RJ45、DC12V、AC24V、Audio Input/Output 1/1CH(RCA)、Alarm Input/Output 1/1CH(RCA) |
| Storage | NAS、FTP/SFTP、SD card |
| Operating Temperature | -30 ~ 60℃，≤95%，non-condensing |
| Storage Temperature | -40 ~ 60℃，≤95%，non-condensing |
| IP Rating | IP68 |
| Certifications | CE / FCC / IK10 / BSMI |
| Dimensions / Weight | Φ159.1 x 118.1 mm，1.0kg |
| *Specifications are subject to change without notice. | |
SCAE38DI52AP
specification
5MP Dual-Light Fixed-Focal Dome IP Camera
Product Features：
5MP 1/2.7" CMOS image sensor, low luminance, and high definition image
H.265/ H.264 high compression rate, ultra-low bit rate
Built-in warm light and IR LED, the max. IR distance is 50m and the max. warm light distance is 30m
Stream Capability 3 Stream
Outputs max 5MP(2960 x 1696 )@30Fps
120dB WDR
Built-in Mic
DC12V/PoE power supply
ONVIF Profile S/T
Specifications：
| Image Sensor | 5MP 1/2.8” Progressive CMOS |
| Max. Resolution | Main Stream：H.265 2960x1696(5MP)@30fps Sub Stream：H.265 704x480(D1)@30fps Third Stream：H.265 704x480(D1)@30fps |
| Lens Type | Fixed-focal 2.8mm/F1.6 |
| Min. Illumination | Color 0.01Lux@F1.6，B/W 0.001Lux@F1.6，0 lux with IR illumination on |
| Day/Night | Removable IR-cut filter |
| Electronic Shutter | Auto / Manual 1/3 ~ 1/100,000s |
| WDR | 120dB |
| Image Setting | Exposure、White Balance、Brightness、Sharpness、Contrast、Saturation、Warmth、NR、OSD、Privacy Masking |
| Image Rotation | 0°/ 90°/ 180°/ 270° |
| IR Illuminators | 50m |
| Warm Light Illuminators | 30m |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Streaming | Supports up to 3 independent H.265 / H.264 / MJPEG streams, each stream is fully customizable for resolution, frame rate, and bitrate. Supports bitrate control (VBR / CBR) for H.265 / H.264. |
| Main Stream | 2960x1696，2880x1620，2688x1520，2560x1440，2304x1296，1920x1080，1280x960，1280x720 |
| Sub Stream | 704x480，640x480，352x240 |
| Third Stream | 704x480 |
| Audio Compression | G.711a / G.711Mu / PCM / G.726 / AAC |
| Built-in Mic | Supports |
| Network Port | 10/100Mbps Ethernet |
| Security | Digest / Account lockout / Video encryption / Firmware encryption / Configuration encryption /HTTPS / IP Filter / IEEE 802.1x / X.509 / WSSE |
| Network Protocols | IPv4，IPv6，HTTP，TCP，UDP，ARP，RTP，RTSP，RTCP，RTMP，SMTP，FTP，SFTP，DHCP，DNS，DDNS，QoS，UPnP，NTP，Multicast，ICMP，IGMP，NFS，PPPoE，SNMP |
| ONVIF | Profile S / T |
| Alarm Event | Motion detection / Video Tampering / Audio detection / Network disconnection / IP Conflict / Voltage Detection |
| Casing Material | Metal + plastic |
| Power Consumption | PoE IEEE802.3af，6W(Max)；DC12V 5W(Max) |
| Interface | RJ45、DC12V |
| Storage | NAS、FTP/SFTP |
| Operating Temperature | -40 ~ 60℃，≤95%，non-condensing |
| Storage Temperature | -40 ~ 60℃，≤95%，non-condensing |
| IP Rating | IP68 |
| Certifications | CE / FCC / IK10 / BSMI |
| Dimensions / Weight | 100.9 x Φ109.9mm，450 g |
| *Specifications are subject to change without notice. | |
SCAC5MDIA1IP
specification
12MP Waterproof IR Fisheye IP Camera(IP66/1.6mm/F2.0)
Specifications：
| Image Sensor | 1/2.3" Progressive CMOS |
| Max. Resolution | 4000(H) × 3000(V) |
| Min. Illumination | Color 0.01Lux@F1.6(AGC ON)；B/W 0Lux @IR ON |
| Video Compression | H.265 / H.264 / H.265+ / H.264+ / MJPEG |
| Frame Rate | Main Stream： 4000x3000@15fps、3000x3000@25fps、2560x2560@25fps、2160x2160@25fps、1520x1520@25fps、1080x1080@25fps、720x720@25fps Sub Stream： 1280x960@15fps、640x480@15fps Mobile Stream： 640x480@15fps |
| Electronic Shutter | 1/5 ~ 1/20000s |
| Lens Type | 1.6mm，180° Horizontal (Wall Mount) / 360° (Ceiling Mount) |
| Aperture | F 2.0±5% |
| Day/Night | IR cut filter with auto switch (Day / Night / Auto / Image / Schedule) |
| Interface | RJ45 10M/100M |
| Video Bitrate | 256Kbps ~ 16Mbps |
| Max. Streams | Triple Stream (Main / Sub / Mobile) |
| Network Protocols | TCP/IP，HTTP，DHCP，DNS，DDNS，RTP/RTSP，PPPoE，SMTP，NTP，UPnP，SNMP，HTTPS，FTP |
| ONVIF | Profile S / G / T |
| WDR | DWDR |
| BLC | Supports |
| ROI | Supports |
| IR Illuminators | 3pcs(SMD)，Effective IR Range up to 10m |
| SD Storage | Micro SD slot，Up to 256GB |
| Alarm | Input/Output 1/1CH |
| Mic | Yes |
| Speaker | Yes |
| Operating Temperature | -35 ~ +60°C |
| IP Rating | IP66 |
| Power Input | DC 12V/POE |
| Power Consumption | 3.8 ~ 9.6W |
| Dimensions | Ø120 x 55mm |
| Weight | 460g |
| *Specifications are subject to change without notice. | |

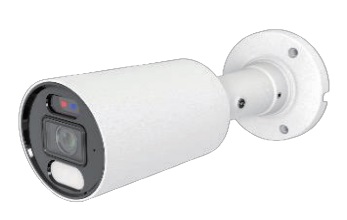

SCAC5FBI42WF
specification
|
ITEM |
SPECIFICATION |
|
Resolution |
4MP 2688(H) × 1520(V) |
|
Image Sensor |
1/1.8” Progressive CMOS |
|
Shutter |
1/5 ~ 1/20000s |
|
Min. Illumination |
Color 0.0005Lux@F1.0(Ultra-low illumination full-color display) |
|
Lens |
2.8mm |
|
Video Compression |
H.265 / H.264 |
|
Video bit rate |
256Kbps ~ 8Mbps，CBR / VBR |
|
System Compatibility |
ONVIF(Profile S/G/T) |
|
LED |
Warm white light *2 & Red-blue warning lights *2 (1 red, 1 blue) |
|
AI function |
License plate recognition / Face recognition / Person & vehicle detection / Perimeter intrusion detection / Line crossing detection / Face detection / Queue detection / Crowd detection / People counting / Stationary Object Detection (Need to be used with monitoring host) |
|
Voice Contact |
Built-in microphone and speaker |
|
Water Proof |
IP67 |

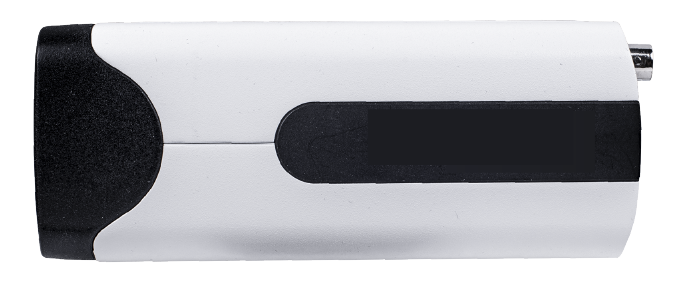

SCAC14XI2SNP
specification
|
ITEM |
SPECIFICATION |
|
Resolution |
1920×1080 |
|
Image Sensor |
1/2" Progressive CMOS |
|
Min. Illumination |
Color 0.01Lux ; black and white 0.005Lux |
|
Lens |
Dc-iris、P-iris、i-CS |
|
Video Compression |
H.265，H.264，MJPEG |
|
Video bit rate |
20k~80M |
|
System Compatibility |
Onvif Profile G、S、T |
|
LED |
NA(Can be connected externally, synchronized, and has a day/night mode switch) |
|
Voice Contact |
1 input/ 1output |
|
Water Proof |
NA(Requires a protective cover) |

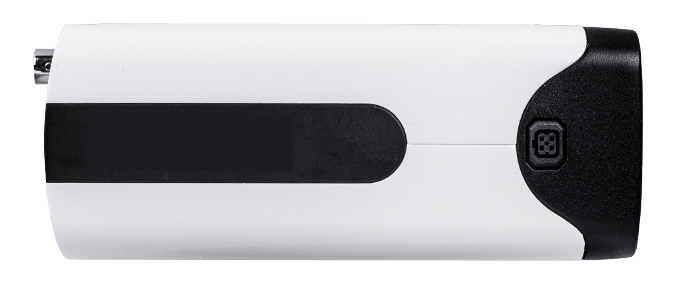

SCAC15XI2SNP
specification
|
ITEM |
SPECIFICATION |
|
Resolution |
1920×1080 |
|
Image Sensor |
1/2" Progressive CMOS |
|
Min. Illumination |
Color 0.01Lux ; black and white 0.005Lux |
|
Lens |
Dc-iris、P-iris、i-CS |
|
Video Compression |
H.265，H.264，MJPEG |
|
Video bit rate |
20k~80M |
|
System Compatibility |
Onvif Profile G、S、T |
|
LED |
NA(Can be connected externally, synchronized, and has a day/night mode switch) |
|
Voice Contact |
NA |
|
Water Proof |
NA(Requires a protective cover) |
SCAC5DBI5ZIF
specification
|
ITEM |
SPECIFICATION |
|
Resolution |
2592×1944 |
|
Image Sensor |
1/2.7" Progressive CMOS |
|
Min. Illumination |
Color 0.002lux @ F1.2(AGC ON) B/W 0 lux @ IR ON |
|
Lens |
2.7~13.5mm(Motorized) Viewable:102°~31° |
|
Video Compression |
h.264/h.265 |
|
Video bit rate |
256Kbps ~ 8Mbps |
|
AI Intelligence Recognition |
License Plate Detection / Face Detection / Face Recognition / Human Detection / Vehicle Detection / Perimeter Intrusion Detection / Line Crossing Detection / Queue Lenght Detection / Crowd Density Detection / People Cross Counting / Stationary Object Detection |
|
System Compatibility |
Dedicated protocol /ONVIF( Profile S, Profile G) |
|
Voice Contact |
1 input/ 1output (RCA) |
|
Water Proof |
IP 66 |
