AI Cross Counting Management System
Operation Mode

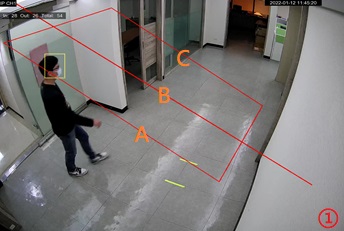

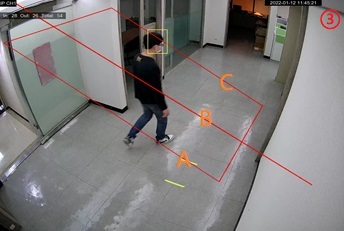

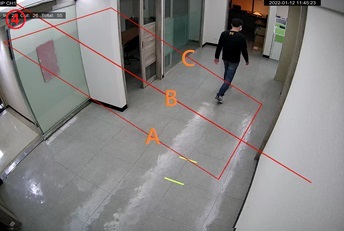

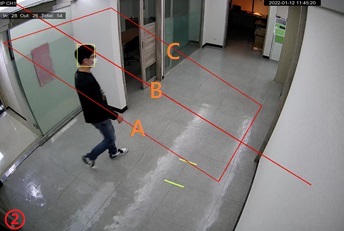

Entry Detection - Single / Multiple
When the target enter the detection area , The head position touche the first detection line by a / b / c in sequence , AI System automatically determines "the flow of Entering" people counting and adds up to 1.
![]() |
![]() |
![]() |
![]() |

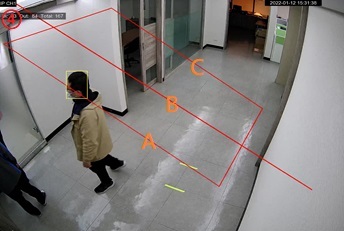

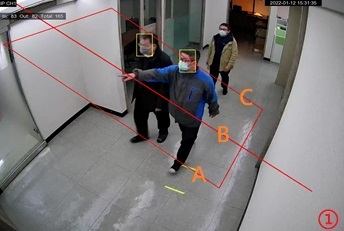

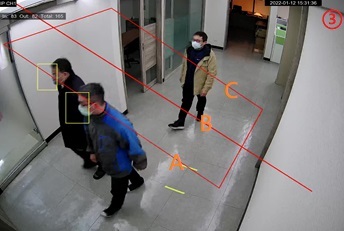

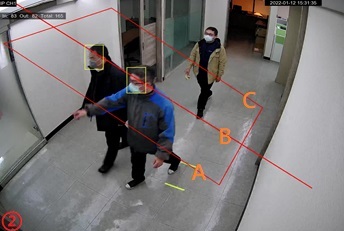

Leave Detection - Single / Multiple
When the target enter the detection area , The head position touche the first detection lines by c / b / a in sequence , AI System automatically determines "the flow of Leaving" peolple counting and adds up to 1.
![]() |
![]() |
![]() |
![]() |

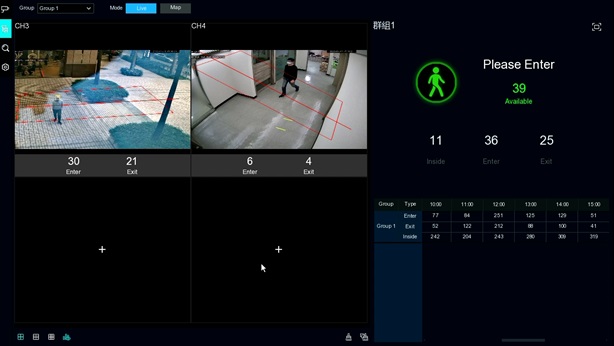

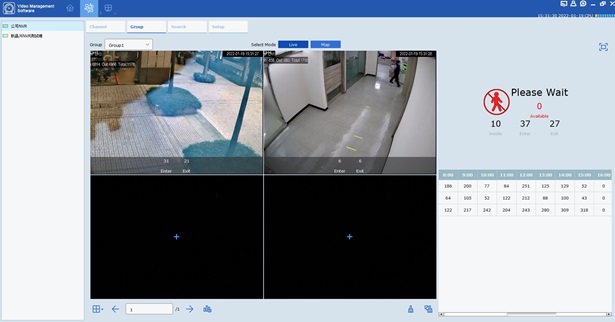

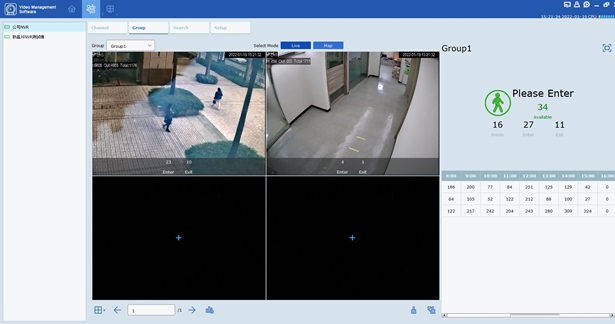

Control Interface
The NVR host can connect multiple cameras (up to 9) to calculate the "Entering and Leaving counting" at the same time ,AI-EMS can automatically synchronize the flow of people counting status after connecting with the NVR host , the System can count the number of reservations automatically.
Icons will display green and the number of people who can still enter , when the maximum number of occupants is not reached.
Alert Icon will display in red , when the maximum number of people can be accommodated.
Reached the maximum capacity | |
NVR side | ![]() |
AI-EMS side | ![]() |
Not reaching the maximum capacity | |
NVR side | ![]() |
AI-EMS side | ![]() |

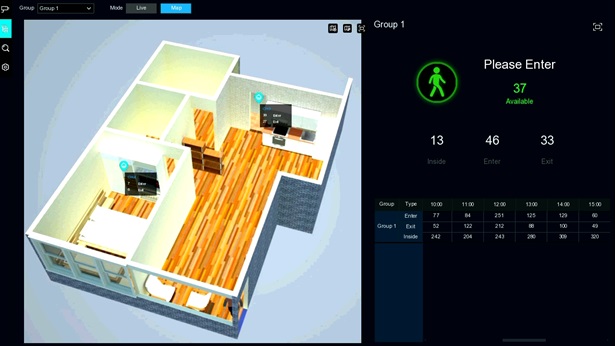

E-Map
The NVR can display the E-Map function and display the flow counting of people in different areas/periods by Camera.

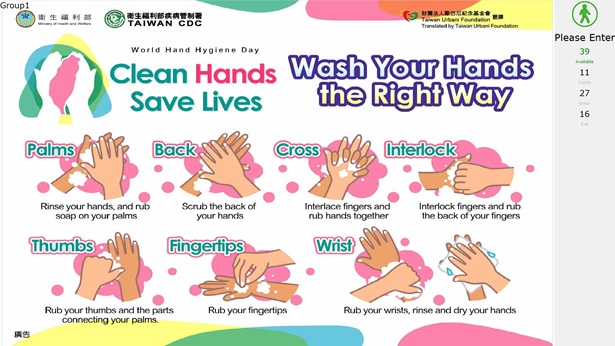

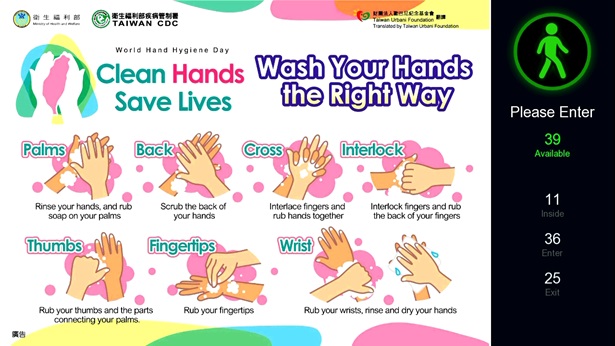

Advertisement/Announcement Display
Support 16 pictures storage space (Maximum 2MB/2560*1600/JPG/PNG/BMP by eath one)
Support loop playback mode.
Support custom stay time setting mode ( 3 to 99 Sec. Maximum)
Users can use it as a digital signboard to display the commercial advertisement page or decree announcement to be broadcast.
![]() |
NVR side |
![]() |
AI-EMS side |

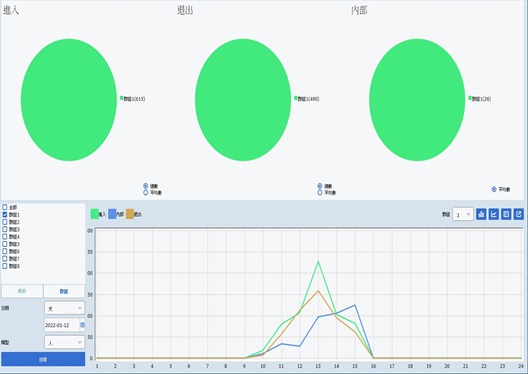

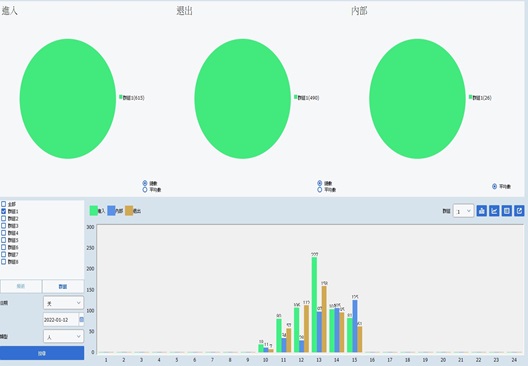

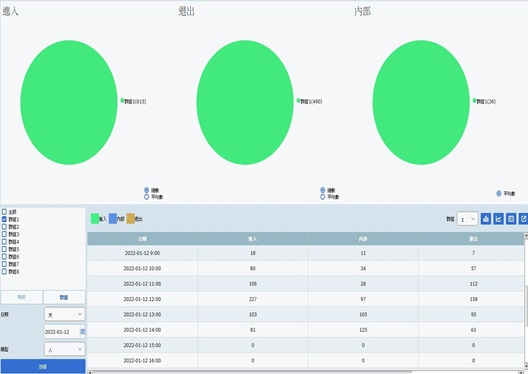

Statistics Chart Control
Both the NVR host and AI-EMS can provide various styles of statistical charts and provide statistical data export function.
![]() |
![]() |
![]() |
Applicable model
NVR Model:CNRA673ON4EA
Camera Model:SCAC5CBI5ZIF
